MEZZA V2


Overview

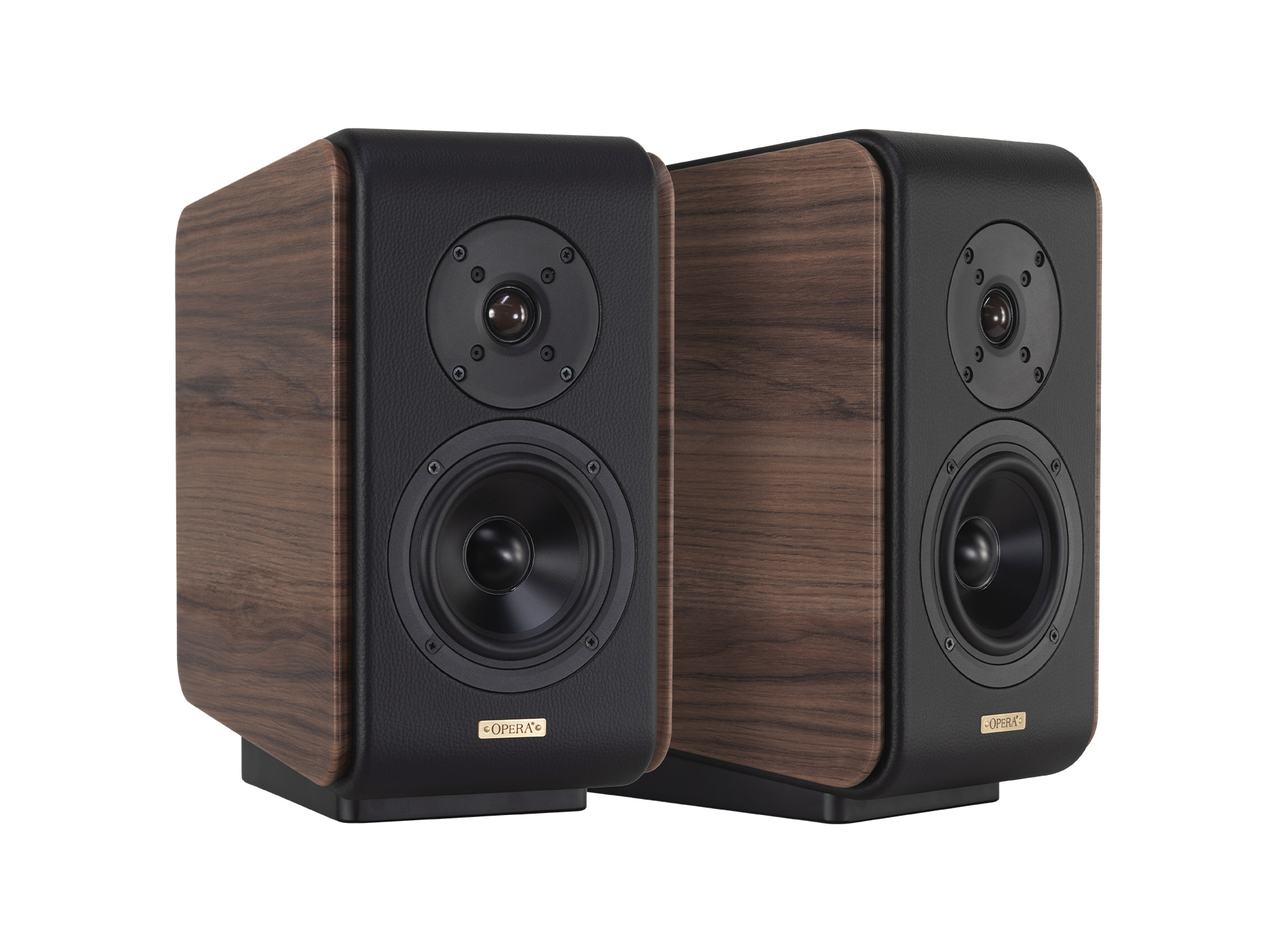

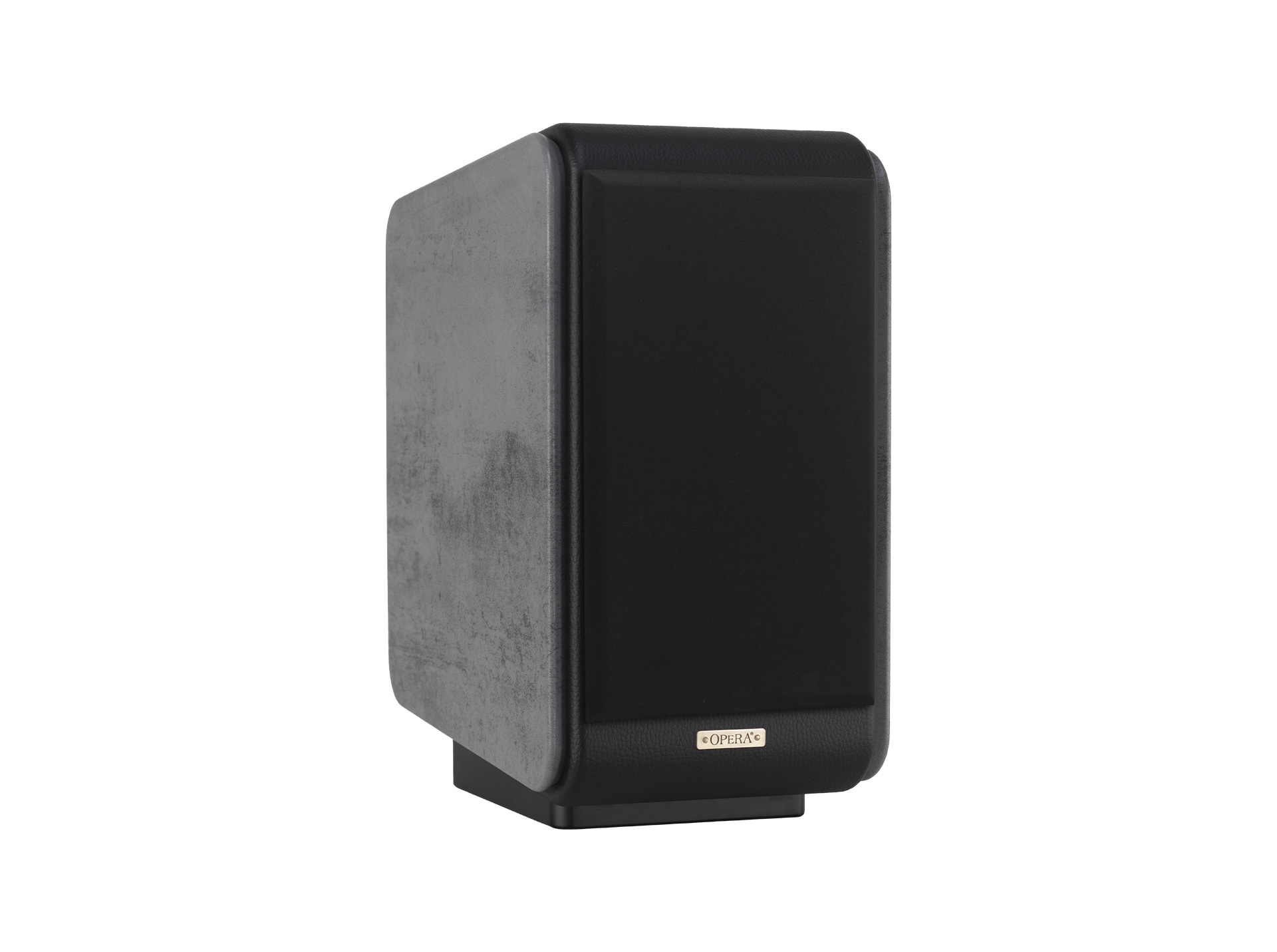

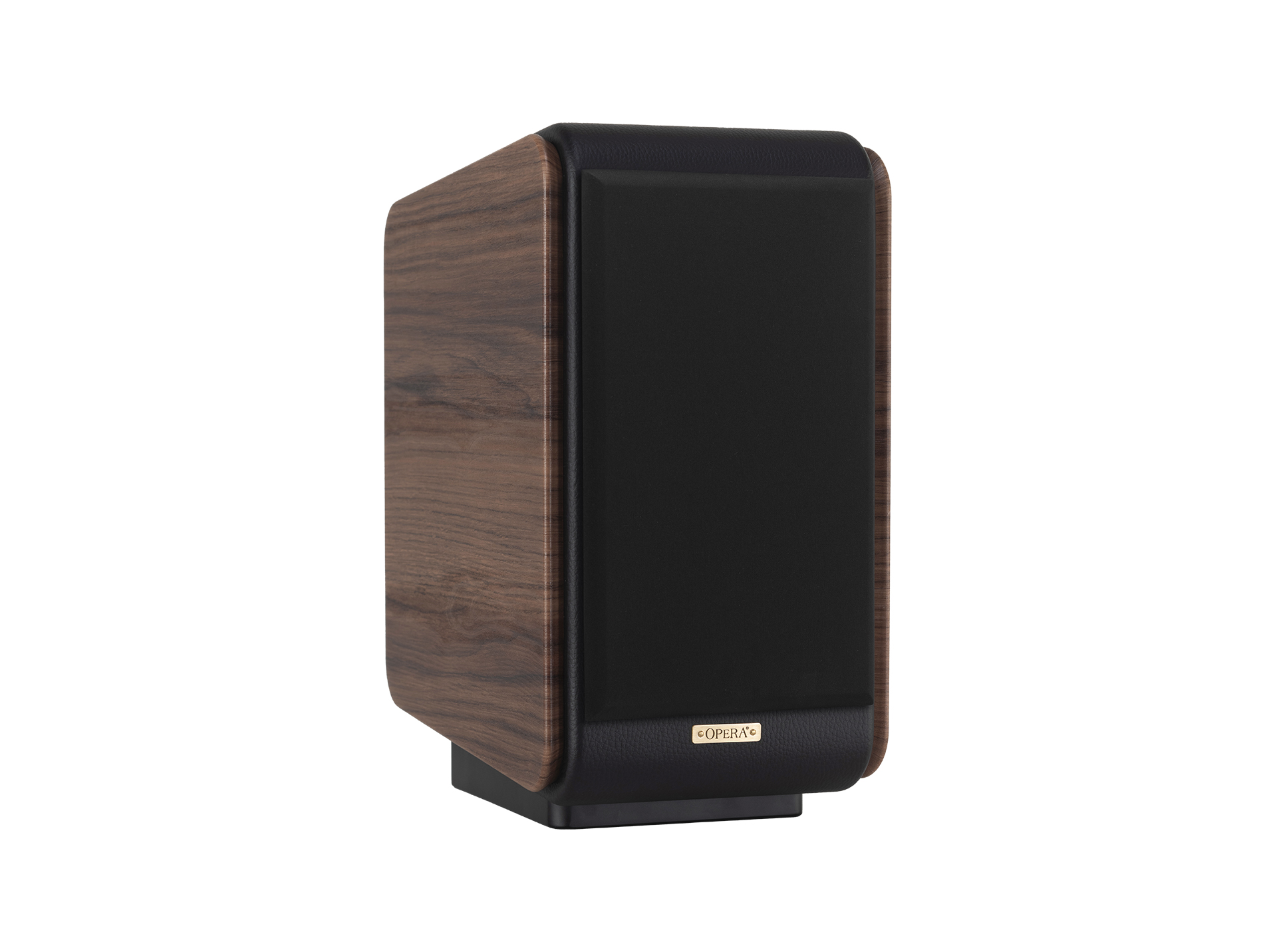

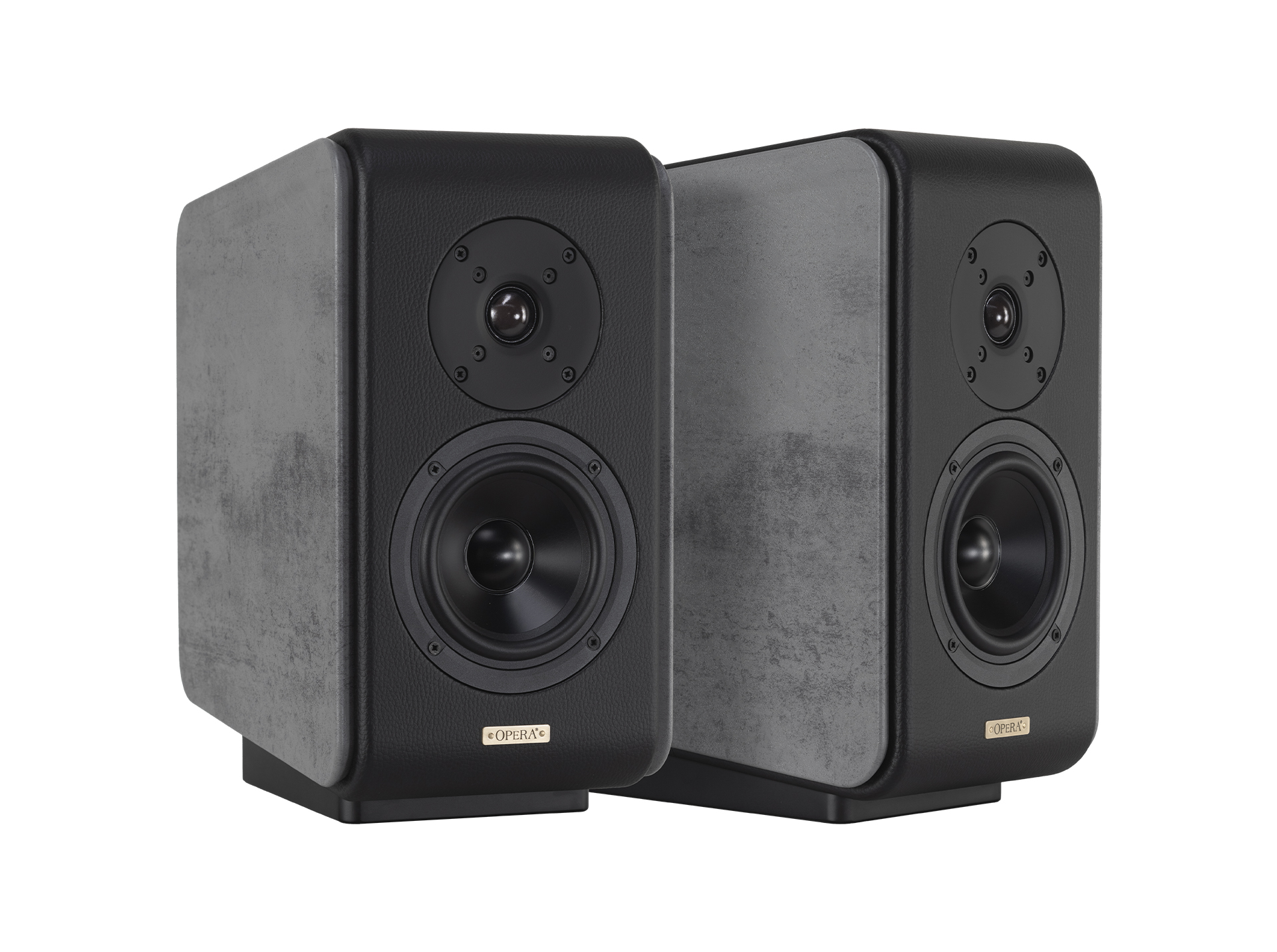

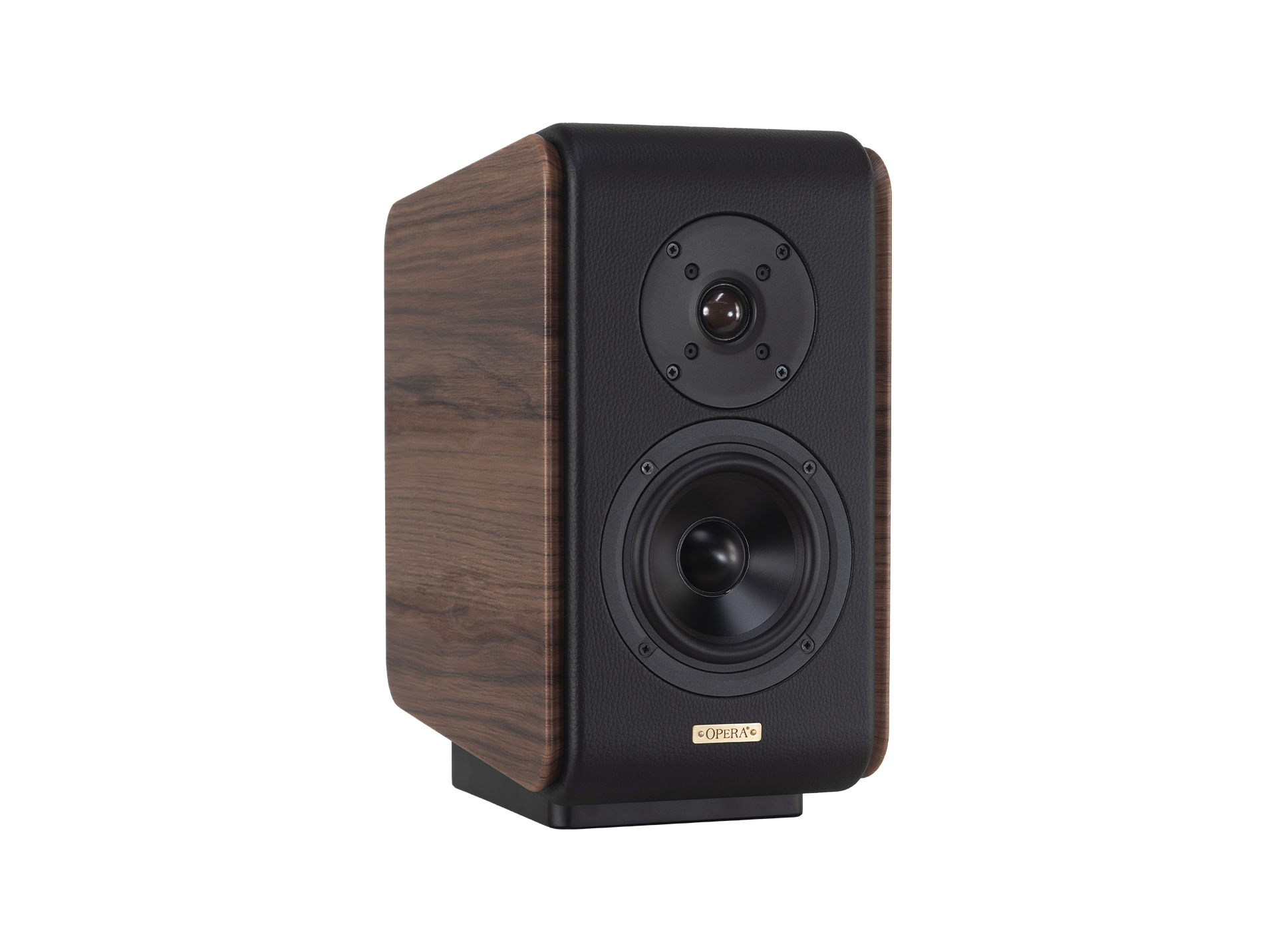

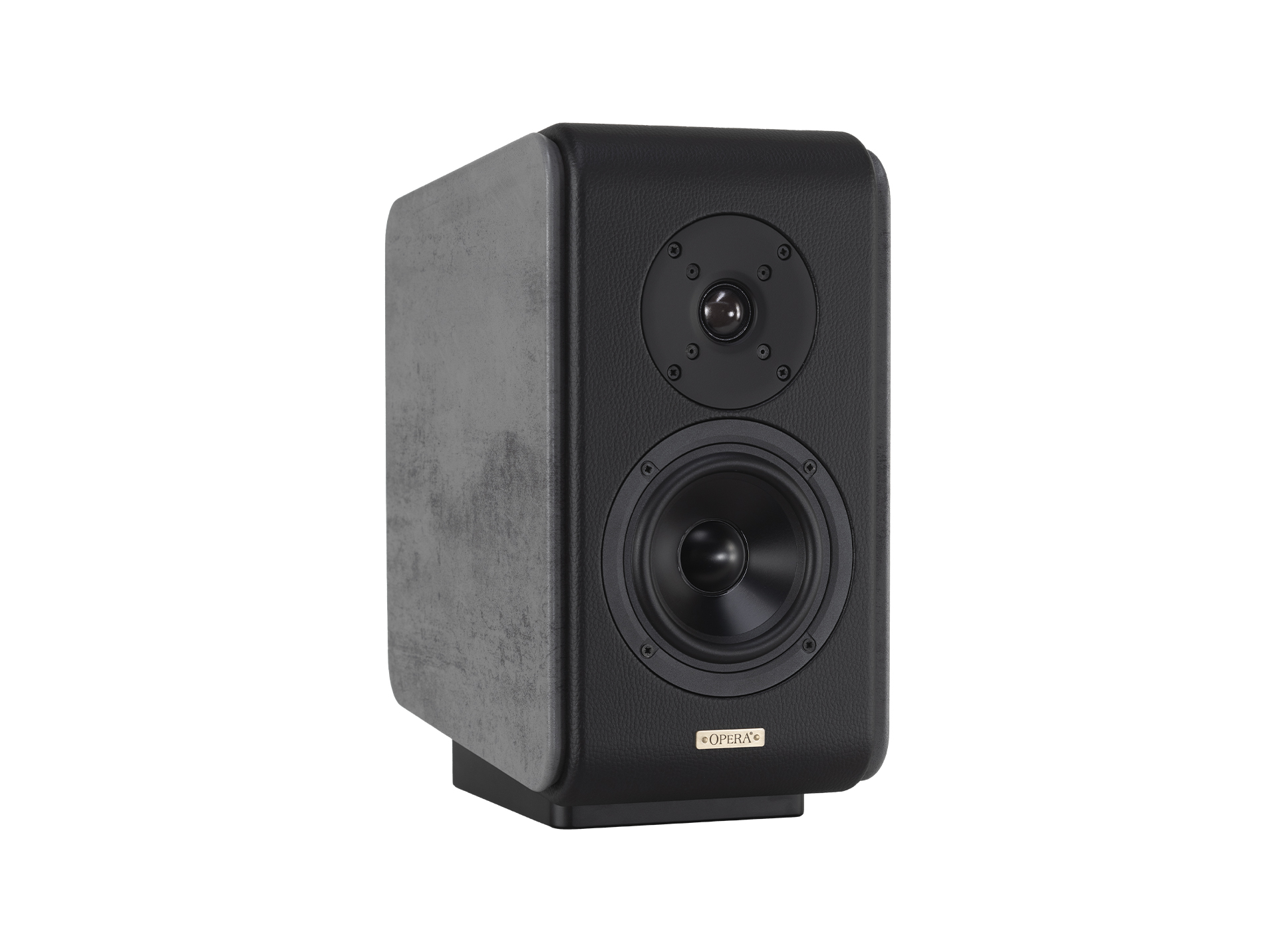

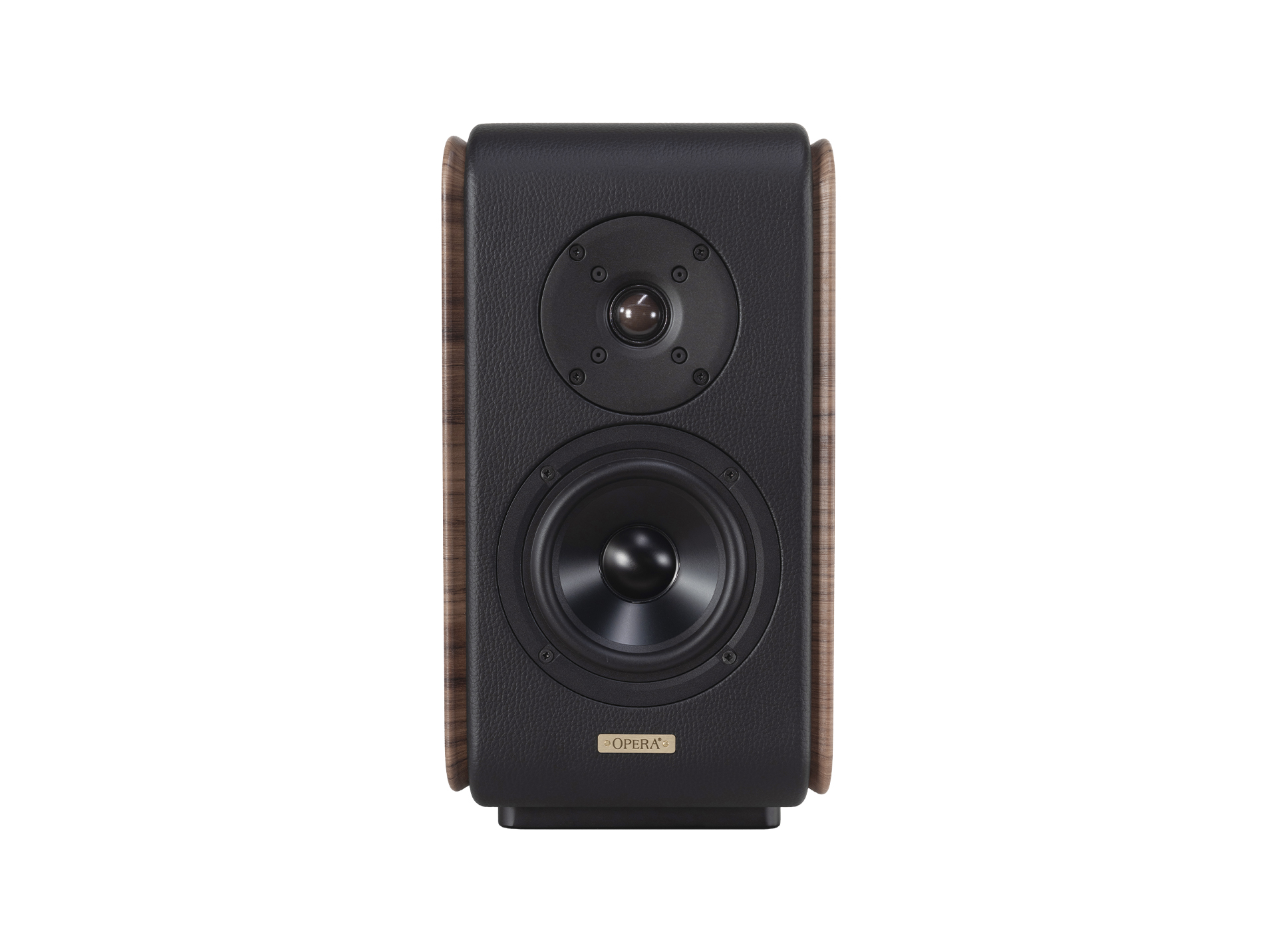

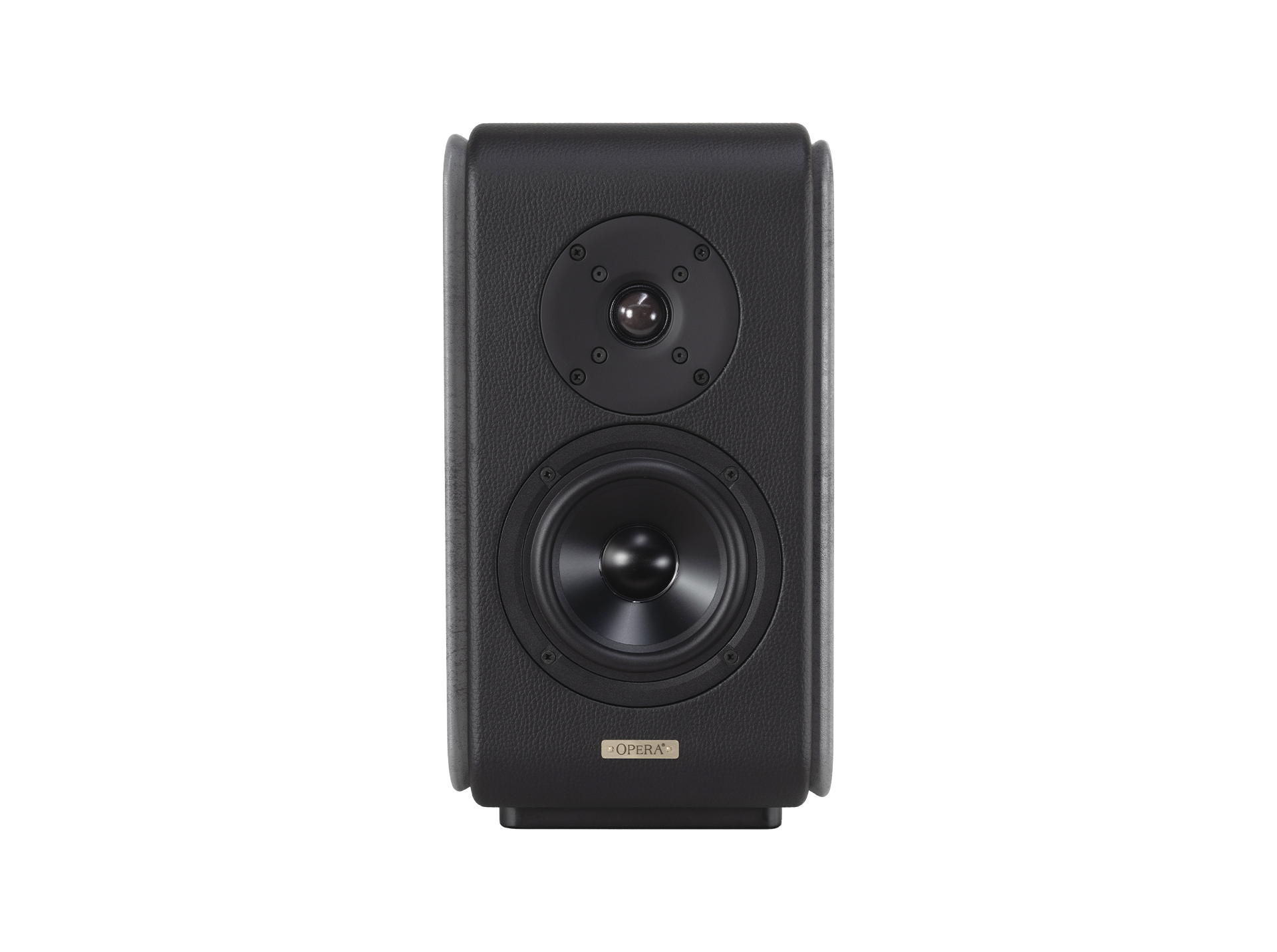

Opera Mezza v2 is the smallest speaker in the Classica line. Featuring a two-way bookshelf design with a rear bass-reflex port, it uses drivers developed in collaboration with Scan-Speak: a 26mm soft dome tweeter and a 150mm midwoofer. Its compactness, versatility, and impressive performance, especially in the vocal range, make it a benchmark in its category.

Mezza v2_Cabinet

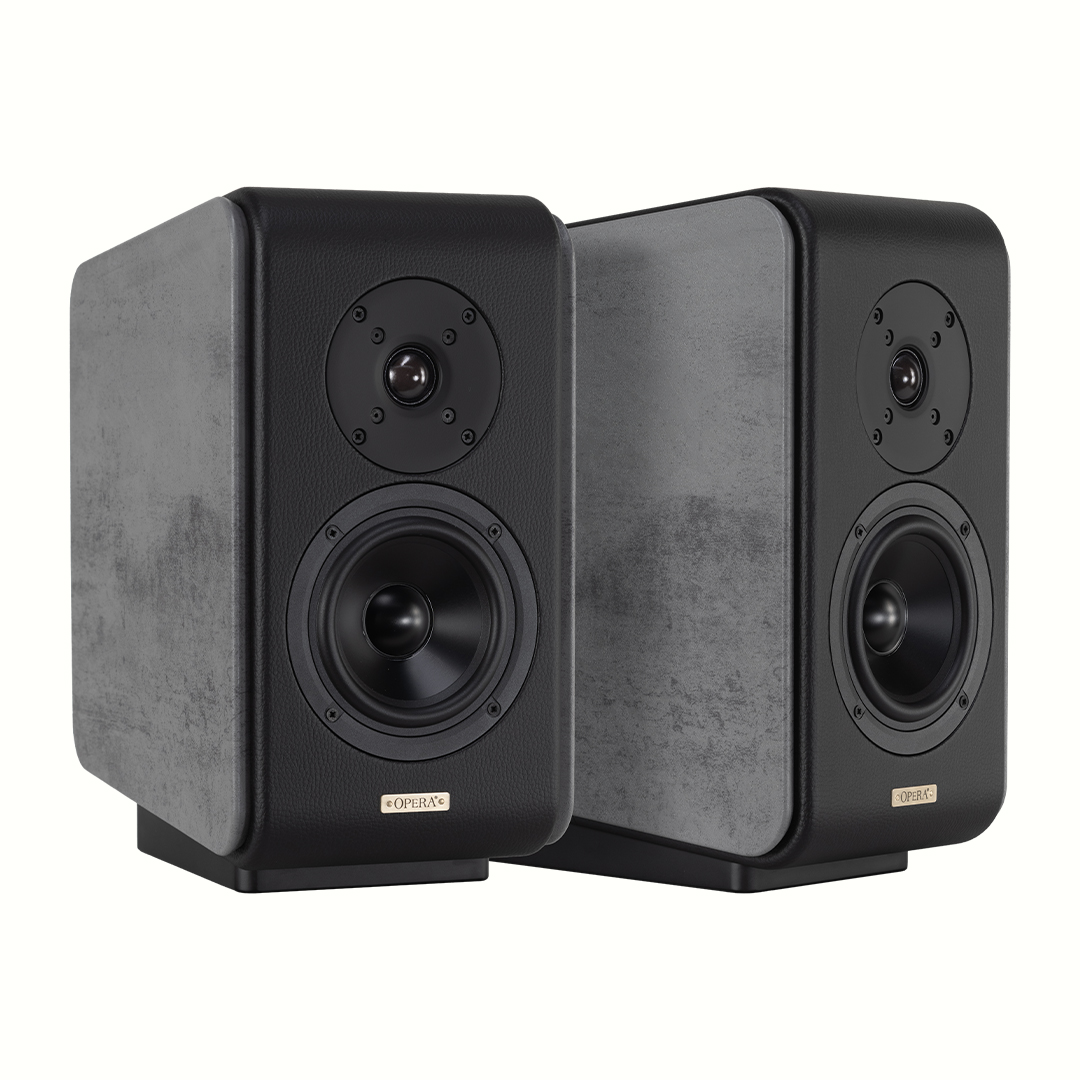

Cabinet

The cabinet of Opera Prima was developed with a rigorous approach from the very first design stages. Its proportions were carefully redefined to break up standing waves and minimize localized resonances. A high-density polyurethane material was used as internal damping, reducing residual reflections by more than an order of magnitude.

Measurements confirmed an extremely fast decay of the unavoidable resonances in the lower-midrange area. In listening terms, this translates into a remarkably clean and accurate reproduction, capable of rendering even the most subtle spatial cues and harmonic details with fidelity.

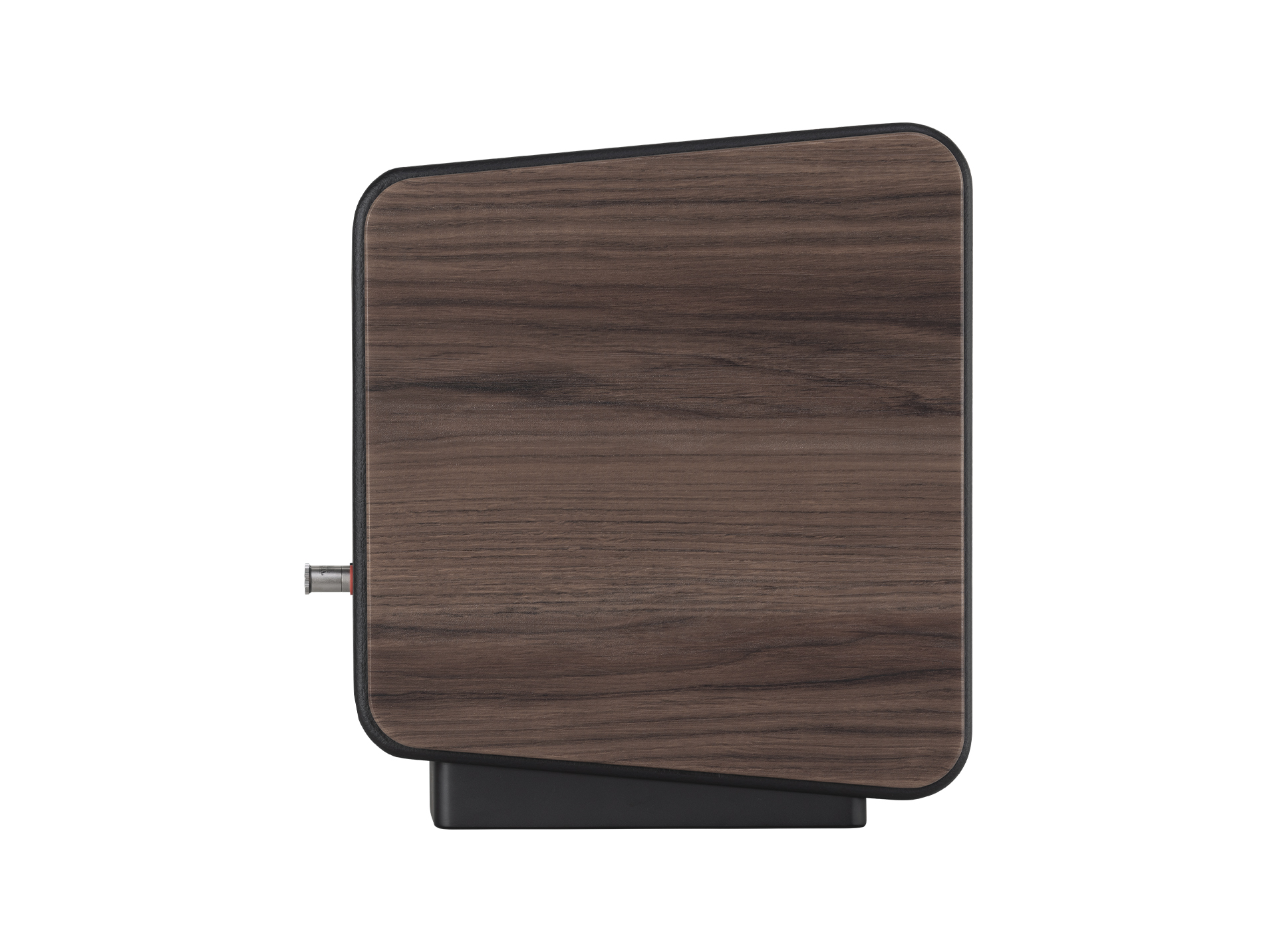

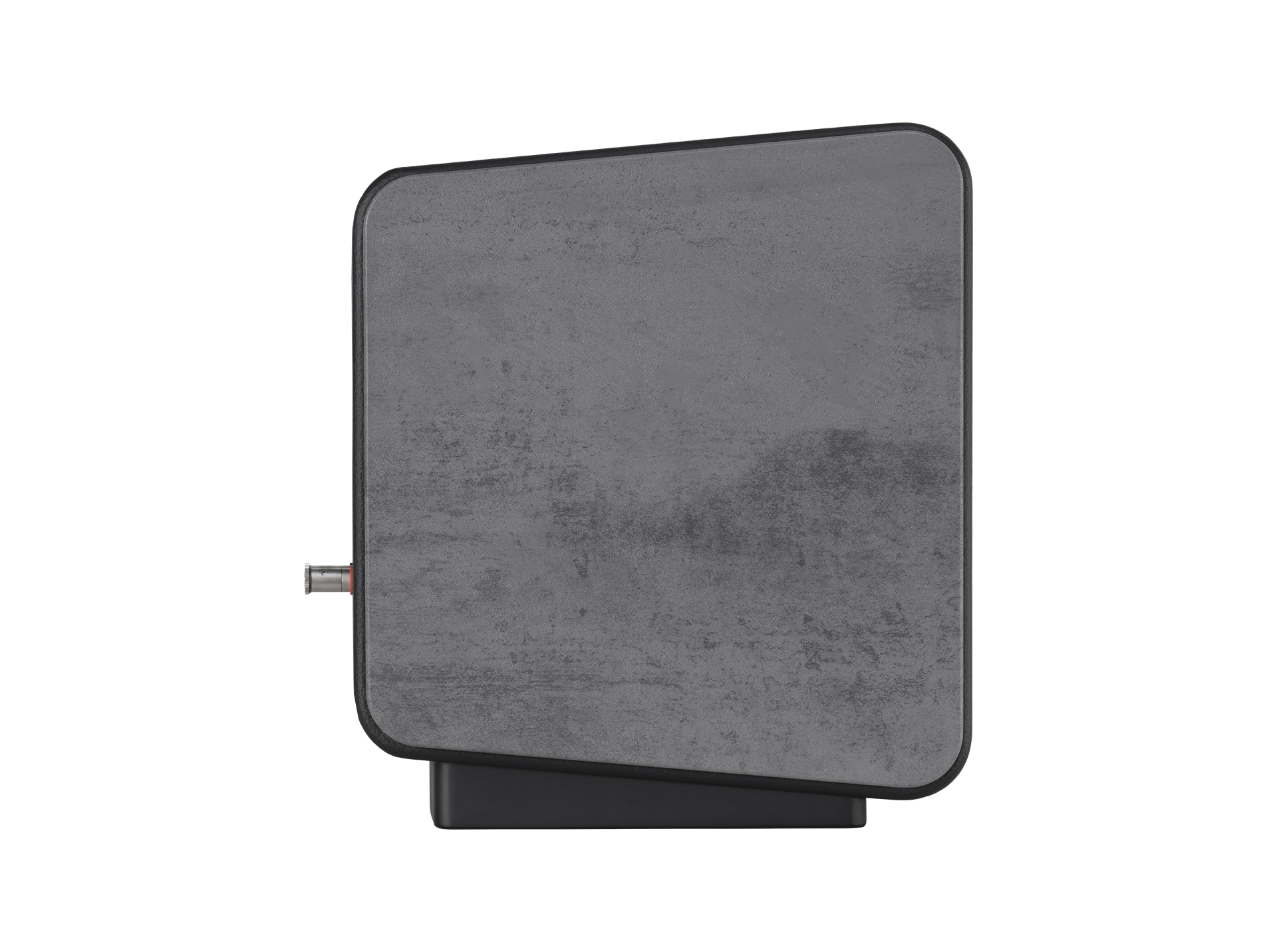

Internal bracing was reduced to the bare minimum to avoid adding unnecessary mass or rigidity that could introduce new colorations. The top and bottom panels are angled with specific inclinations designed to reduce mutual interaction and optimize the distribution of internal waves.

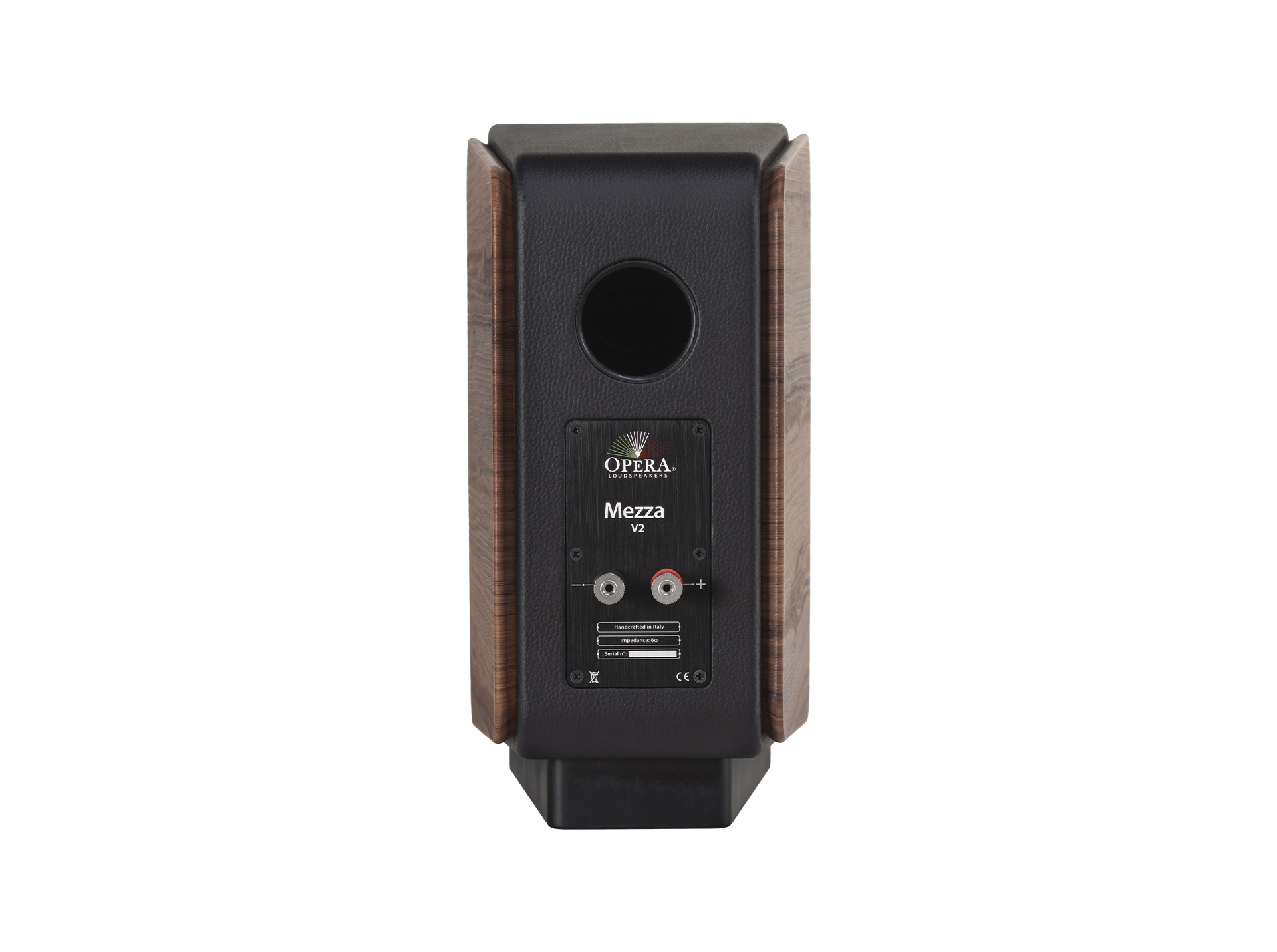

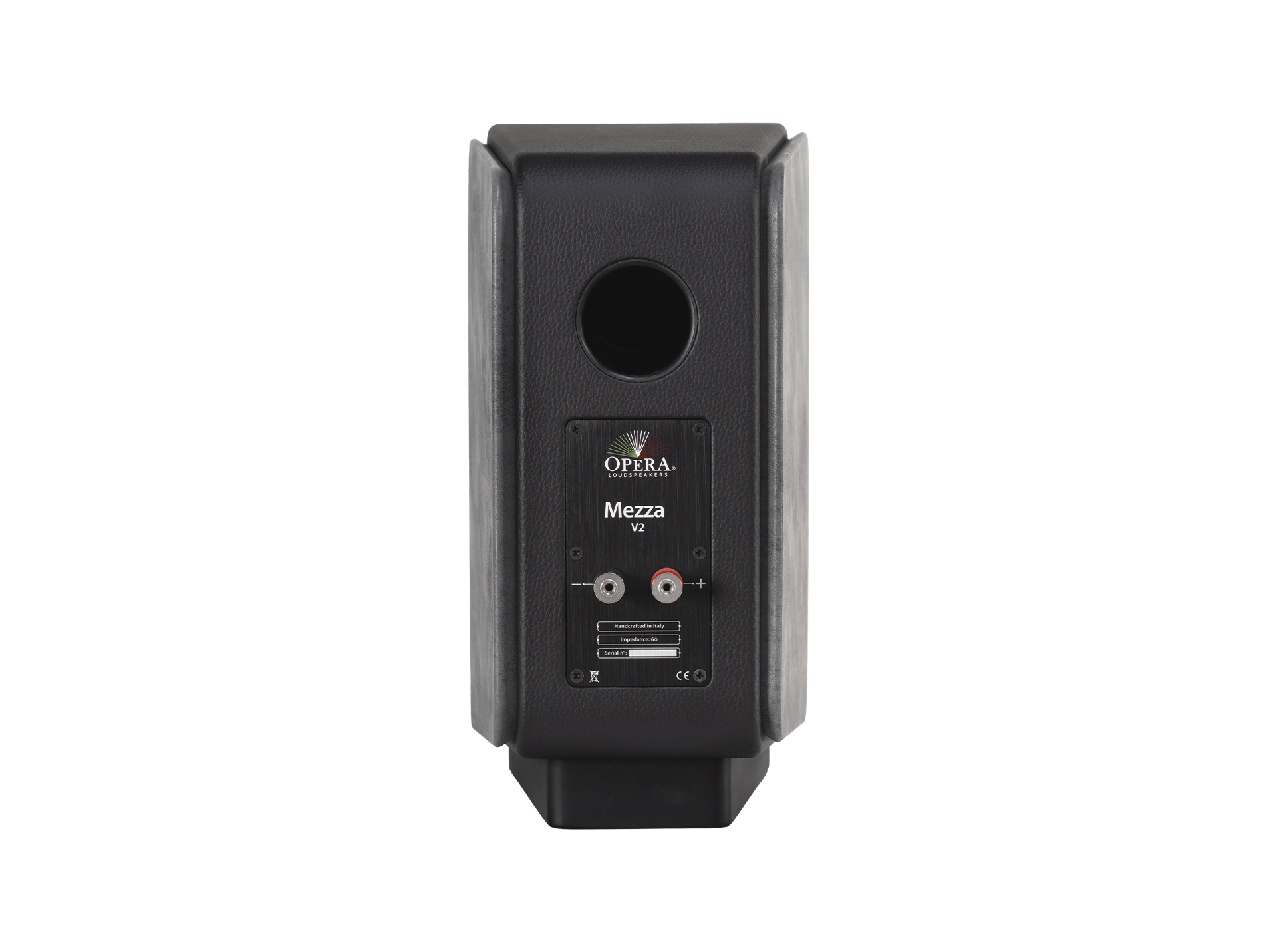

In keeping with Opera’s tradition, the driver recess is internally chamfered to minimize compression effects, particularly in the midrange. The rear-firing reflex port has been carefully tuned to deliver controlled low-end extension without compromising transient speed or harmonic coherence.
RED06016

Drivers

The collaboration between Opera Loudspeakers and Scan-Speak led to the development of a custom midwoofer designed specifically for this project, with parameters finely tuned to strike the perfect balance between extension, control, and dynamics.


The generously sized voice coil and the diaphragm’s linear excursion provide excellent power handling, even at lower frequencies. The use of an aluminum diaphragm reduces moving mass and avoids high-frequency resonances, which simplifies the crossover design and improves tonal clarity.


The tweeter, also based on a Scan-Speak design, features a significantly reinforced motor structure to ensure superior control, especially in the midrange. The result is a fast and natural transient response, further enhanced by an acoustically optimized phase behavior that emphasizes microdynamics and attack precision.

xover4

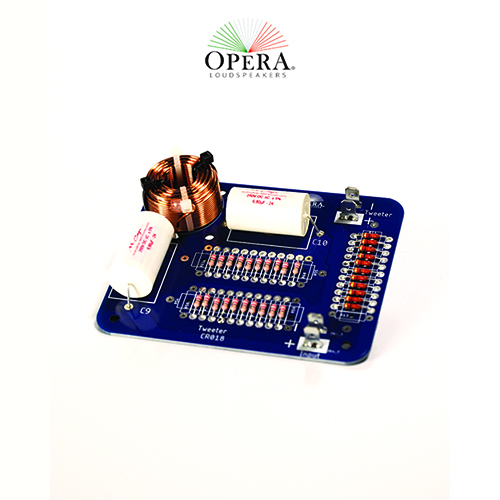

Crossover

The crossover was developed following a detailed analysis of the cabinet dimensions and the elimination of internal standing waves. The design is deliberately simple, but made with audiophile-grade components and extreme attention to detail, ensuring tonal coherence and precise frequency response.

Special care was given to both the acoustic behavior of each section and the phase alignment between the two drivers, optimized for both on-axis and off-axis performance. This results in a spatially accurate and realistic reproduction, with a wide and well-defined soundstage in a real-world environment.

Air-core inductors with low-resistance copper wire are used to minimize series resistance, while the damping resistors are carefully selected to optimize both frequency response and phase behavior.

Design Philosophy

Designing an eight-liter loudspeaker using a midwoofer with an effective diameter of only 105 mm is a fairly classic approach in speaker engineering. However, it is far from simple: it requires careful and often counterintuitive design decisions. Many manufacturers focus on maximizing low-frequency extension through aggressive bass reflex tuning, often at the expense of damping and power handling. We chose a different path: to find the ideal balance between low-end extension and control, without relying on extreme driver parameters that could compromise system reliability.


The result is a compact yet solid loudspeaker, with a frequency response that goes beyond flat on-axis performance, delivering real-world results that impress. Its compact footprint, flexible placement options, and remarkable vocal reproduction make it a true benchmark in terms of tonal balance and acoustic performance.

RED06045

Technical specification
